Wind Uplift Pavers
Wind-Lok Paver System
Brooklin has developed the Wind-Lok paver system to resist high winds on rooftops while providing an elevated aesthetic for modern rooftop environments. With a total uplift resistance of 225 psf (10.77kPA), our newest innovation is designed to withstand severe weather conditions.
The Wind-Lok system integrates the Bison Roof pedestals system to provide invisible security for a seamless look. Rooftop safety and style in one product.

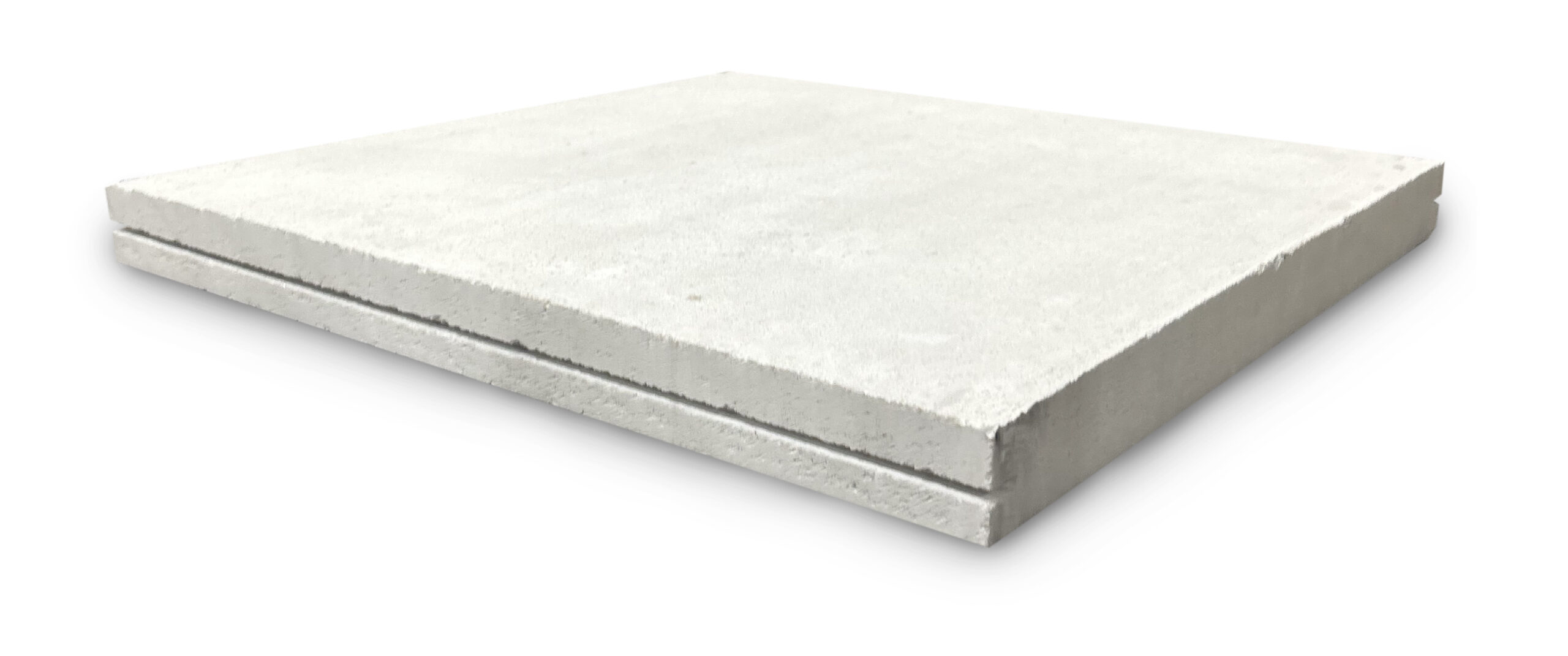

View info sheet Inquire about this product- Continuous Kerf Cut Concrete Paver
- FS-150 Paver Spline Installed in One
- Continuous Direction
- Stack or Running Bond
- 3/16” Gap Between Pavers
- Max 24” OC (On Center) Pedestal Spacing
- Bracing Required
- Pedestal Height Range 1/2” To 18”
- Ledger Required as specified
Available in a full range of colours and textures.
Dimensions: 24” x 24” x 2 1/8” (610 mm x 610 mm x 54mm)
Weight: 26.5 lb/sq ft. (120.4 kg/m2)
Ballast-Lok® Slab

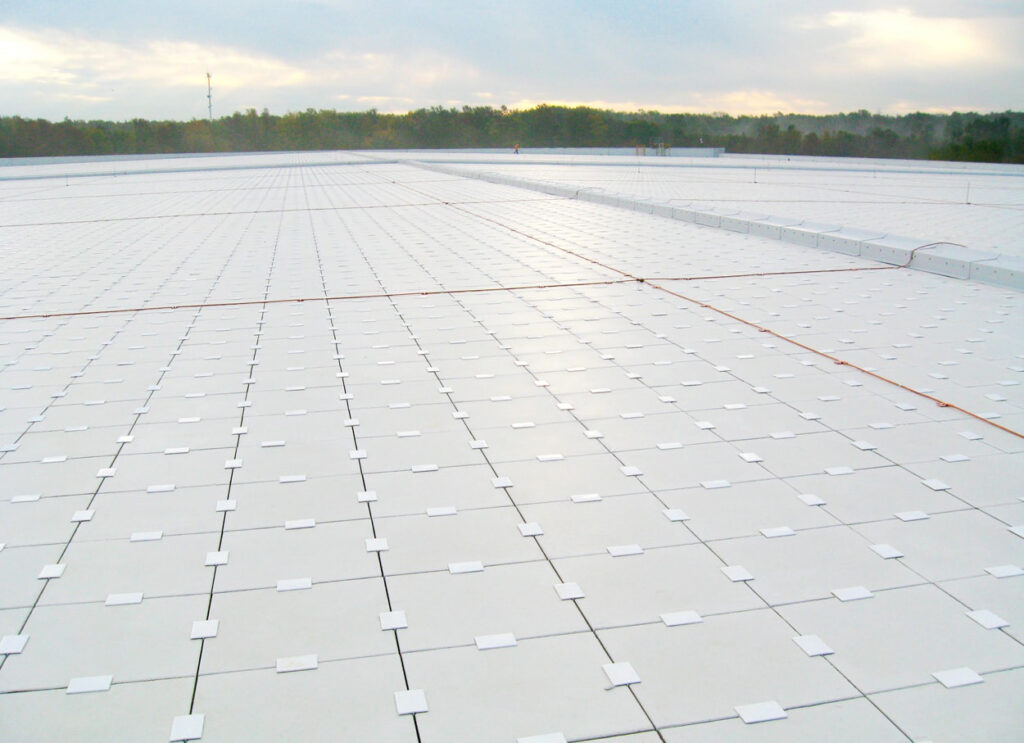

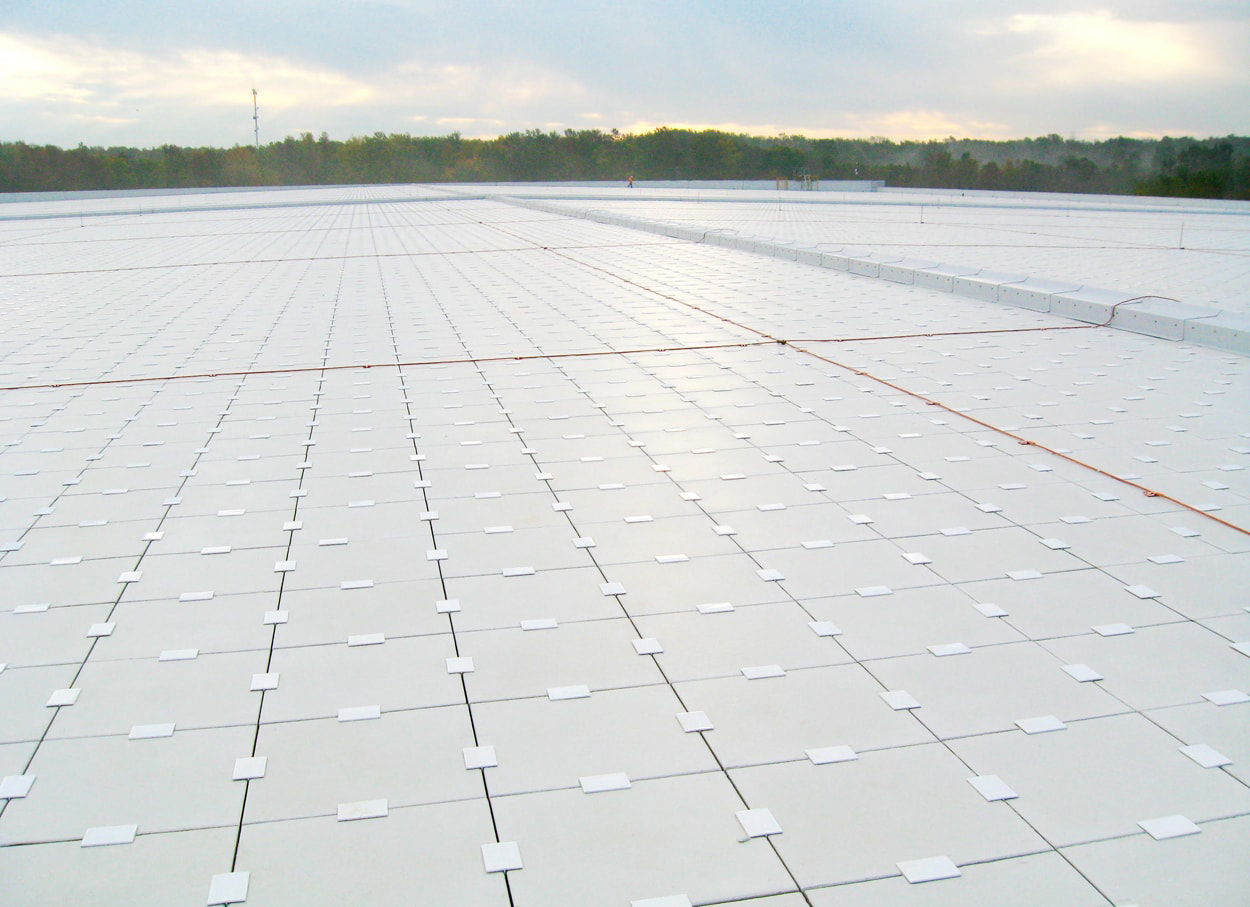

Brooklin’s Ballast-Lok concrete roof slabs and locking clips provide superior wind uplift resistance for protected membrane roofing systems. The innovative Ballast-Lok system has been proven to withstand wind uplift pressure of 180psf (8.6kPa), using the experimental safety factor of 1.5 as per the CSA A 123.21-10 dynamic wind test protocol.
As weather patterns become increasingly erratic, protecting flat roof decks from wind uplift is a growing concern. Over time, wind dynamics can cause fatigue in rooftop materials and lead to disastrous failures. The Ballast-Lok system provides insurance by locking down concrete roof slabs with high-performance polyethylene clips and pedestals.
View Data Sheet Inquire about this productProven to withstand wind pressure of 180psf 1.5 (safety factor)
Simple tools increase speed and reduce labour
